利用MyBatis如何創建一個逆向工程?相信很多沒有經驗的人對此束手無策,為此本文總結了問題出現的原因和解決方法,通過這篇文章希望你能解決這個問題。
成都創新互聯堅持“要么做到,要么別承諾”的工作理念,服務領域包括:成都網站建設、網站制作、企業官網、英文網站、手機端網站、網站推廣等服務,滿足客戶于互聯網時代的汪清網站設計、移動媒體設計的需求,幫助企業找到有效的互聯網解決方案。努力成為您成熟可靠的網絡建設合作伙伴!
1.什么是逆向工程
mybaits需要程序員自己編寫sql語句,mybatis官方提供逆向工程 可以針對單表自動生成mybatis執行所需要的代碼(mapper.java,mapper.xml、po..)
企業實際開發中,常用的逆向工程方式:
由于數據庫的表生成java代碼。
2.下載逆向工程
mybatis-generator-core-1.3.2-bundle.zip
3.使用方法(會用)
3.1運行逆向工程
官方文檔中提供的運行逆向工程的幾種方法
Running MyBatis Generator
MyBatis Generator (MBG) can be run in the following ways:
(1)From the command prompt with an XML configuration
(2)As an Ant task with an XML configuration
(3)As a Maven Plugin
(4)From another Java program with an XML configuration
(5)From another Java program with a Java based configuration
(6)還可以通過eclipse的插件生成代碼
建議使用java程序方式(From another Java program with an XML configuration),不依賴開發工具。
下面創建一個生成逆向文件的工程,將自動生成的文件再拷貝到原工程中去(這么做是為了放止直接在源文件中生成會覆蓋掉同名文件)

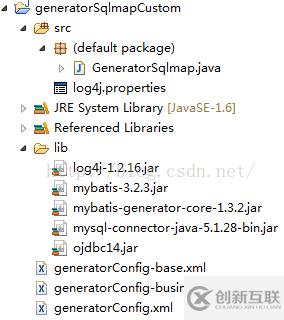

導入的jar包和工程結構截圖如下:
如圖
3.2生成代碼配置文件
generatorConfig.xml:
<?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN" "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd"> <generatorConfiguration> <context id="testTables" targetRuntime="MyBatis3"> <commentGenerator> <!-- 是否去除自動生成的注釋 true:是 : false:否 --> <property name="suppressAllComments" value="true" /> </commentGenerator> <!--數據庫連接的信息:驅動類、連接地址、用戶名、密碼 --> <jdbcConnection driverClass="com.MySQL.jdbc.Driver" connectionURL="jdbc:mysql://localhost:3306/mybatis" userId="root" password="1234"> </jdbcConnection> <!-- <jdbcConnection driverClass="oracle.jdbc.OracleDriver" connectionURL="jdbc:oracle:thin:@127.0.0.1:1521:yycg" userId="yycg" password="yycg"> </jdbcConnection> --> <!-- 默認false,把JDBC DECIMAL 和 NUMERIC 類型解析為 Integer,為 true時把JDBC DECIMAL 和 NUMERIC 類型解析為java.math.BigDecimal --> <javaTypeResolver> <property name="forceBigDecimals" value="false" /> </javaTypeResolver> <!-- targetProject:生成PO類的位置 --> <javaModelGenerator targetPackage="cn.edu.hpu.ssm.po" targetProject=".\src"> <!-- enableSubPackages:是否讓schema作為包的后綴 --> <property name="enableSubPackages" value="false" /> <!-- 從數據庫返回的值被清理前后的空格 --> <property name="trimStrings" value="true" /> </javaModelGenerator> <!-- targetProject:mapper映射文件生成的位置 --> <sqlMapGenerator targetPackage="cn.edu.hpu.ssm.mapper" targetProject=".\src"> <!-- enableSubPackages:是否讓schema作為包的后綴 --> <property name="enableSubPackages" value="false" /> </sqlMapGenerator> <!-- targetPackage:mapper接口生成的位置 --> <javaClientGenerator type="XMLMAPPER" targetPackage="cn.edu.hpu.ssm.mapper" targetProject=".\src"> <!-- enableSubPackages:是否讓schema作為包的后綴 --> <property name="enableSubPackages" value="false" /> </javaClientGenerator> <!-- 指定數據庫表 --> <table tableName="items"></table> <table tableName="orders"></table> <table tableName="orderdetail"></table> <table tableName="user"></table> <!-- <table schema="" tableName="sys_user"></table> <table schema="" tableName="sys_role"></table> <table schema="" tableName="sys_permission"></table> <table schema="" tableName="sys_user_role"></table> <table schema="" tableName="sys_role_permission"></table> --> <!-- 有些表的字段需要指定java類型 <table schema="" tableName=""> <columnOverride column="" javaType="" /> </table> --> </context> </generatorConfiguration>
3.3執行生成程序
GeneratorSqlmap.java: import java.io.File; import java.util.ArrayList; import java.util.List; import org.mybatis.generator.api.MyBatisGenerator; import org.mybatis.generator.config.Configuration; import org.mybatis.generator.config.xml.ConfigurationParser; import org.mybatis.generator.internal.DefaultShellCallback; public class GeneratorSqlmap { public void generator() throws Exception{ List<String> warnings = new ArrayList<String>(); boolean overwrite = true; //加載配置文件 File configFile = new File("generatorConfig.xml"); ConfigurationParser cp = new ConfigurationParser(warnings); Configuration config = cp.parseConfiguration(configFile); DefaultShellCallback callback = new DefaultShellCallback(overwrite); MyBatisGenerator myBatisGenerator = new MyBatisGenerator(config, callback, warnings); myBatisGenerator.generate(null); } public static void main(String[] args) throws Exception { try { GeneratorSqlmap generatorSqlmap = new GeneratorSqlmap(); generatorSqlmap.generator(); } catch (Exception e) { e.printStackTrace(); } } }

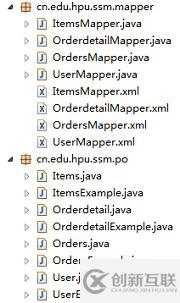

生成后的代碼:
如圖
3.4使用生成的代碼
需要將生成工程中所生成的代碼拷貝到自己的工程中。我們這里吧ItemsMapper.java和ItemsMapper.xml、Items、ItemsExample類拷入我們的原工程。
測試ItemsMapper中的方法
package cn.edu.hpu.ssm.test; import static org.junit.Assert.fail; import java.util.Date; import java.util.List; import org.junit.Before; import org.junit.Test; import org.springframework.context.ApplicationContext; import org.springframework.context.support.ClassPathXmlApplicationContext; import cn.edu.hpu.ssm.mapper.ItemsMapper; import cn.edu.hpu.ssm.po.Items; import cn.edu.hpu.ssm.po.ItemsExample; public class ItemsMapperTest { private ApplicationContext applicationContext; private ItemsMapper itemsMapper; //注解Before是在執行本類所有測試方法之前先調用這個方法 @Before public void setup() throws Exception{ applicationContext=new ClassPathXmlApplicationContext("classpath:spring/applicationContext.xml"); itemsMapper=(ItemsMapper)applicationContext.getBean("itemsMapper"); } //根據主鍵刪除 @Test public void testDeleteByPrimaryKey() { fail("Not yet implemented"); } //插入 @Test public void testInsert() { Items items=new Items(); items.setName("iPhone-5S"); items.setPrice(3999f); items.setDetail("正品行貨"); items.setPic("sdasd.jpg"); items.setCreatetime(new Date()); itemsMapper.insert(items); } //自定義條件來查詢 @Test public void testSelectByExample() { ItemsExample itemsExample=new ItemsExample(); //通過Criteria構造查詢條件 ItemsExample.Criteria criteria=itemsExample.createCriteria(); criteria.andNameEqualTo("電視機"); //可能返回多條記錄 List<Items> list=itemsMapper.selectByExample(itemsExample); for (int i = 0; i < list.size(); i++) { Items it=list.get(i); System.out.println(it.getId()+":"+it.getName()); } } //根據主鍵來查詢 @Test public void testSelectByPrimaryKey() { Items items=itemsMapper.selectByPrimaryKey(1); System.out.println(items.getName()); } //更新數據 @Test public void testUpdateByPrimaryKey() { //對所有字段進行更新,需要先查詢出來再更新 Items items = itemsMapper.selectByPrimaryKey(1); items.setName("iPhone"); itemsMapper.updateByPrimaryKey(items); //如果傳入字段不空為才更新,在批量更新中使用此方法,不需要先查詢?cè)俑? //itemsMapper.updateByPrimaryKeySelective(record); } }
看完上述內容,你們掌握利用MyBatis如何創建一個逆向工程的方法了嗎?如果還想學到更多技能或想了解更多相關內容,歡迎關注創新互聯行業資訊頻道,感謝各位的閱讀!
